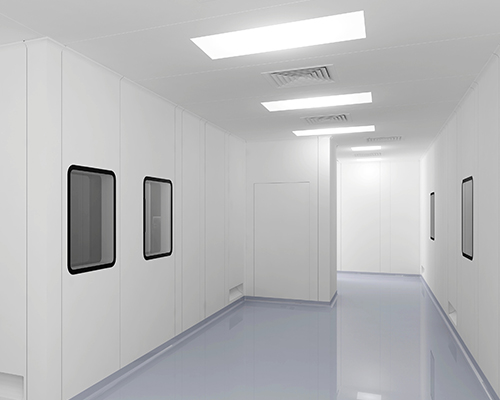

Wall Panel

Wall panels are a key part of our product lineup because they are essential for Cleanrooms. The following list of standard characteristics is provided, but keep in mind that Servo wall panels can also be modified to meet your needs.

Specifications:

  • Standard size : 1200 X 3000mm (Other sizes customizable on request)
  • MOC : GI Pre-Coated / GI powder-coated / SS -304
  • Thickness: 0.6 / 0.8 / 1mm
  • Skin Type: GPSP sheet / Aluminium sheet
  • Panel Thickness: 50 / 60 / 80 / 100mm
  • Factory-made Cut-outs (For Filter & Light Fixtures and other Services)
  • Fire retardant PUF / ROCKWOOL as In-fill (Other In-Fill options available on request)
  • Ceiling suspension

Ceiling Panel

Servo Modular Ceiling panels are made up of 50mm / 60mm thickness depending upon the type of application. Ceiling panels are mounted with specially designed suspension members and linkages for every application. Walkable & Non Walkable ceiling panels are made as per client’s requirement with specially designed stiffening systems for walkable load bearing ceilings

Specifications:

  • Standard size : 1200 X 3000mm (Other sizes customizable on request)
  • MOC : GI Pre-Coated / GI powder-coated / SS -304
  • Thickness: 0.5/0.6 / 0.8 / 1mm
  • Skin Type: GPSP sheet / Aluminium sheet
  • Panel Thickness: 50 / 60 / 80 / 100mm
  • Fastened to extruded aluminium / GI profiles / Tongue and Groove
  • Fire retardant PUF / ROCKWOOL as In-fill (Other In-Fill options available on request)
  • Factory- made cutouts for integration with Pass boxes, Autoclaves, etc.
  • Factory- made cutouts for in-built power sockets and Magnehelic manometers
